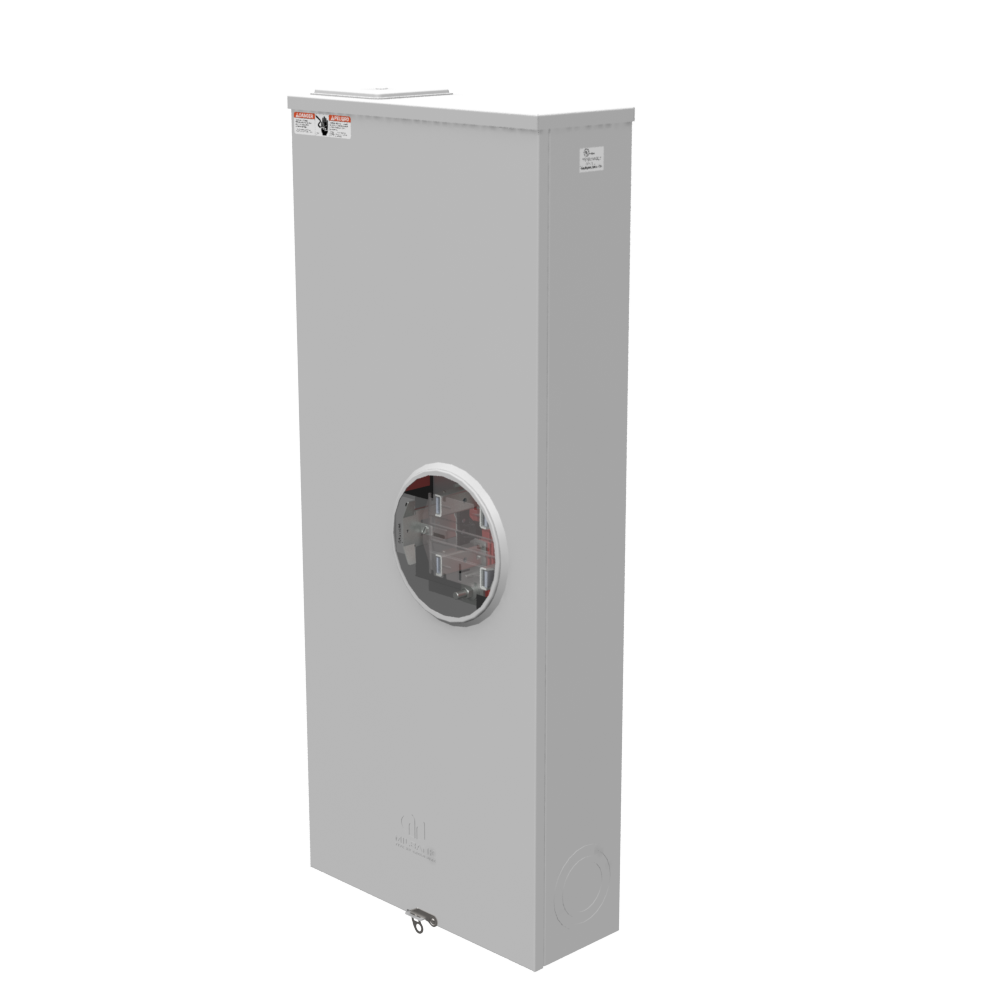

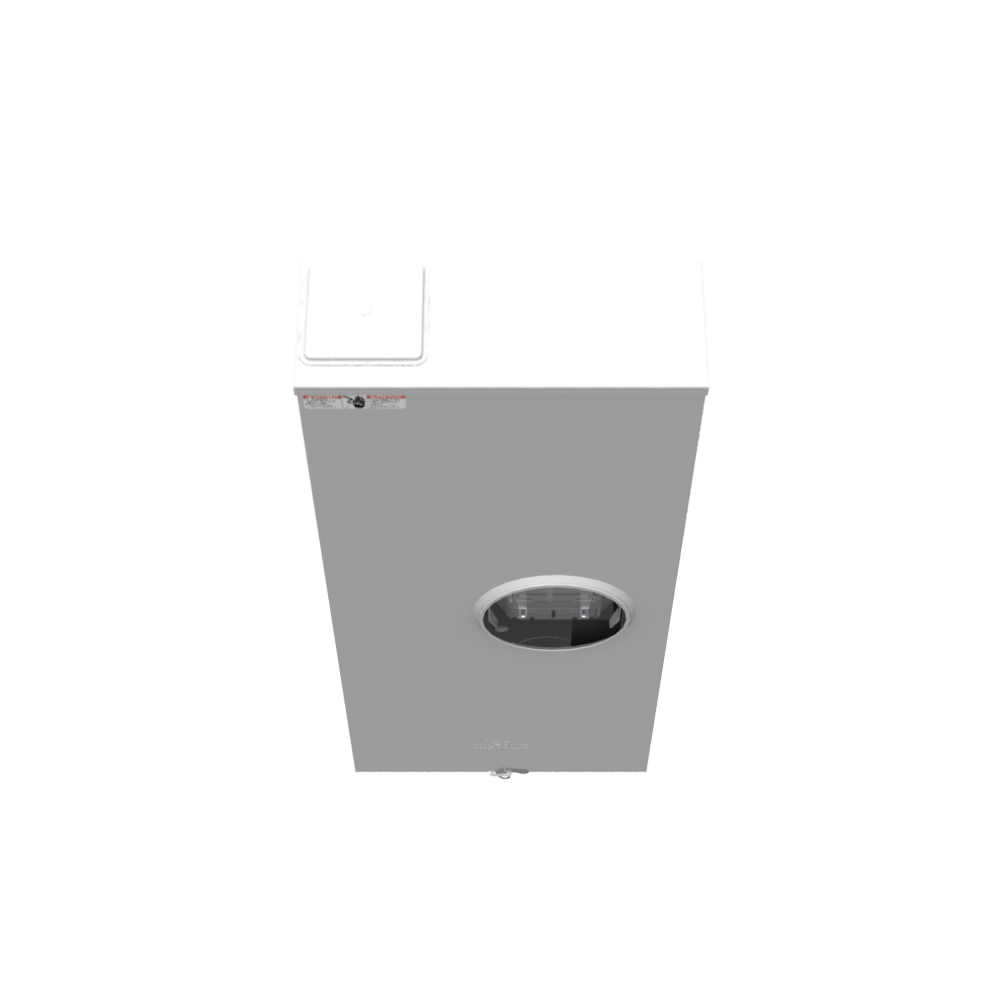

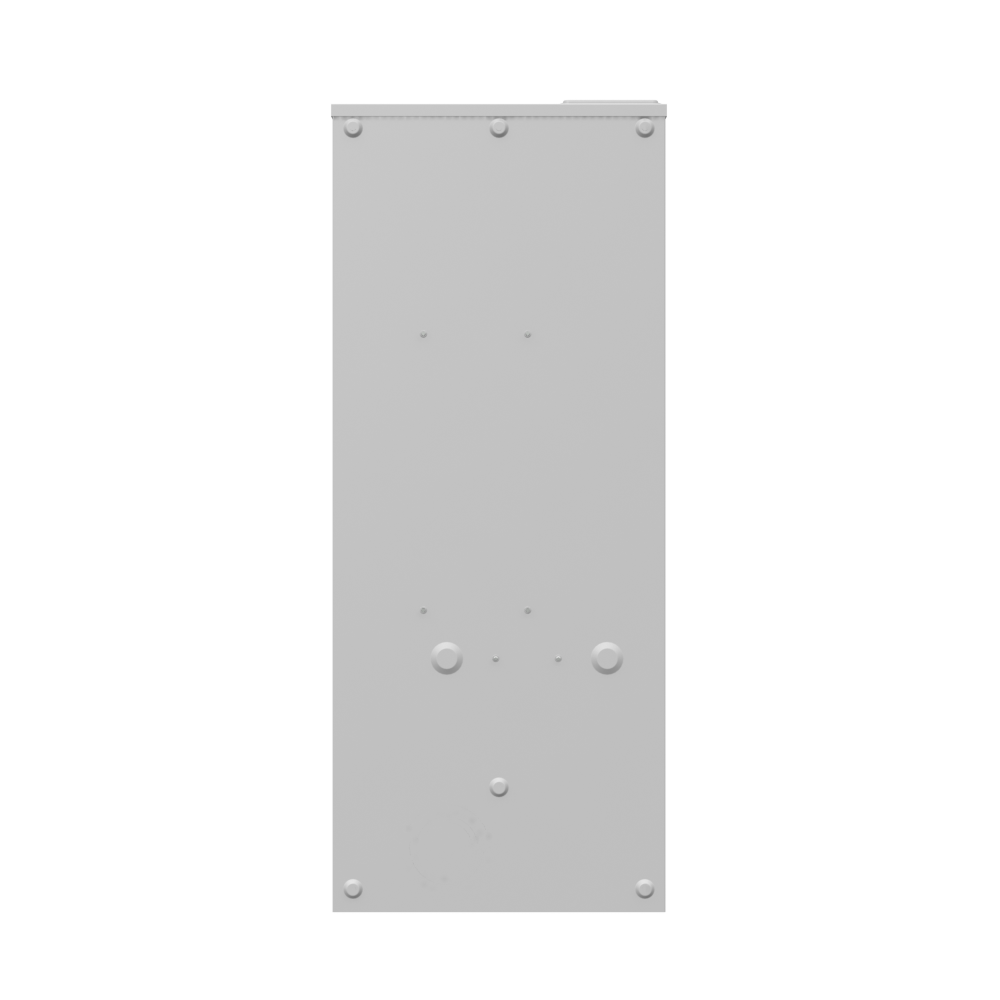

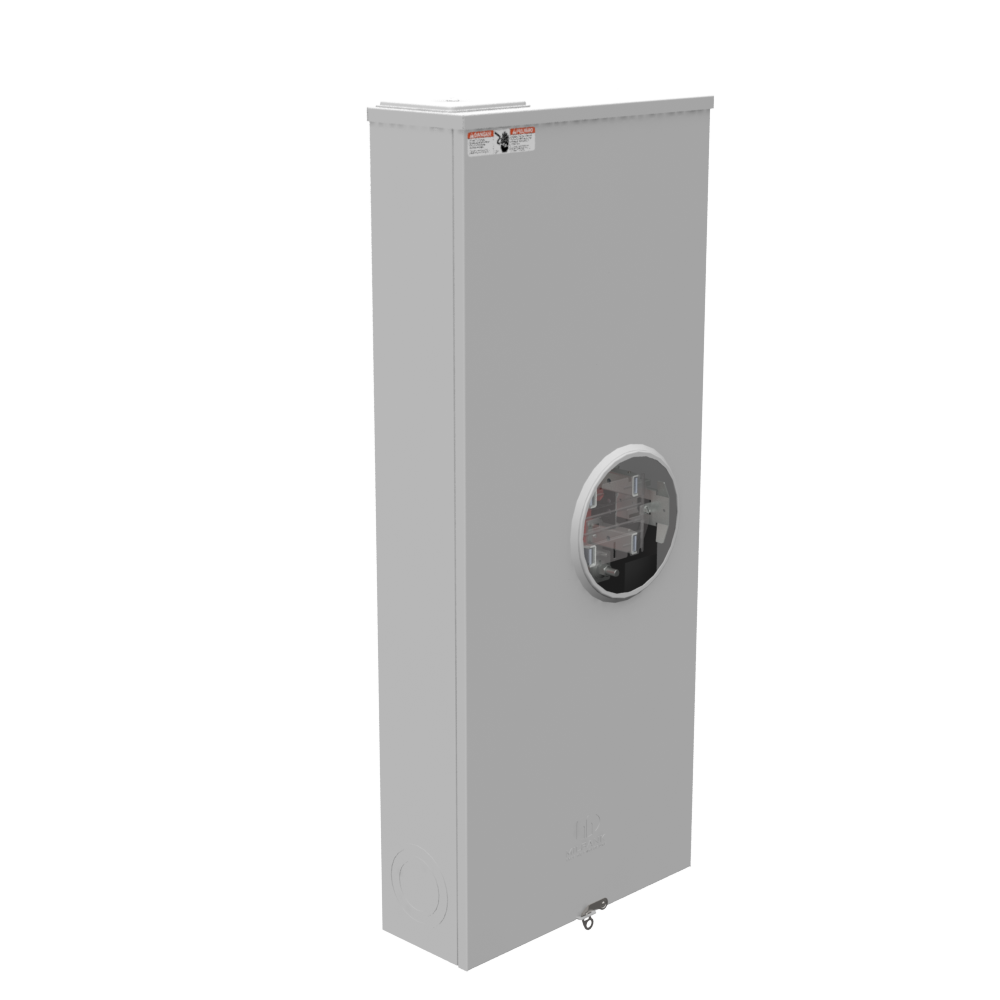

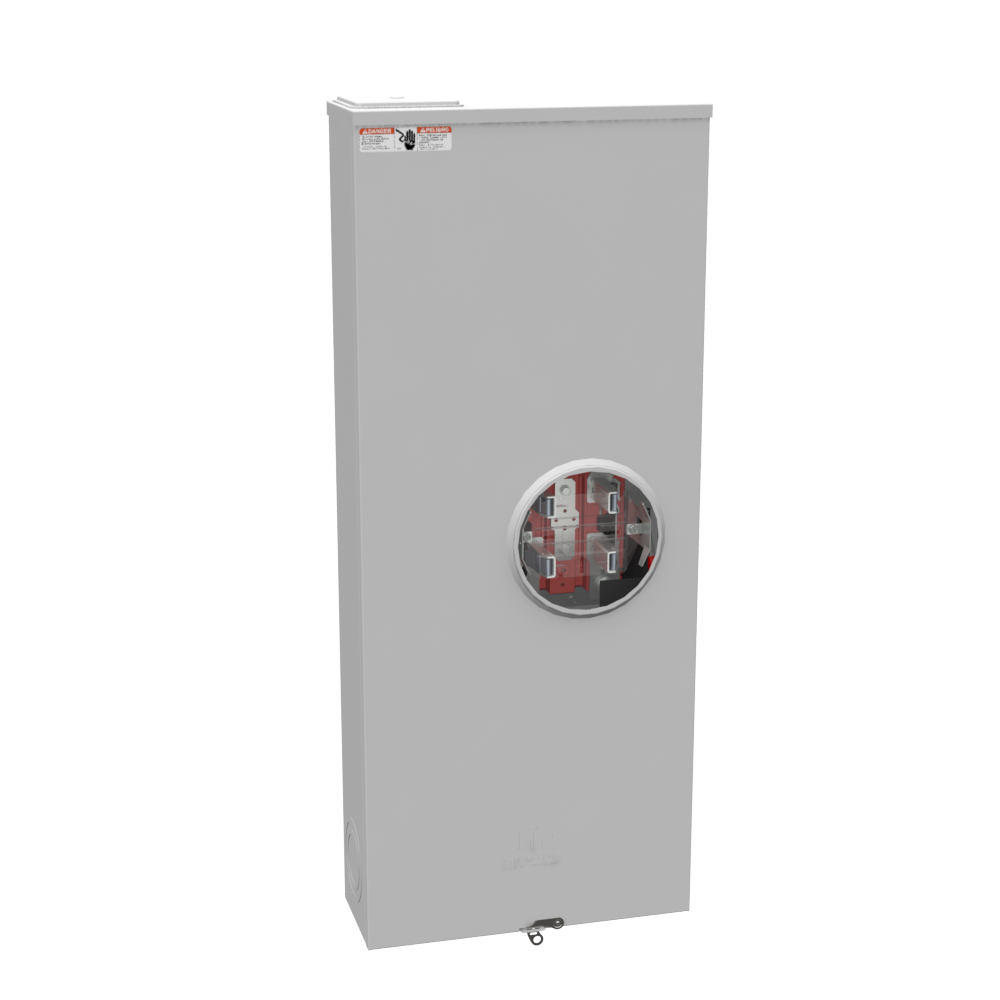

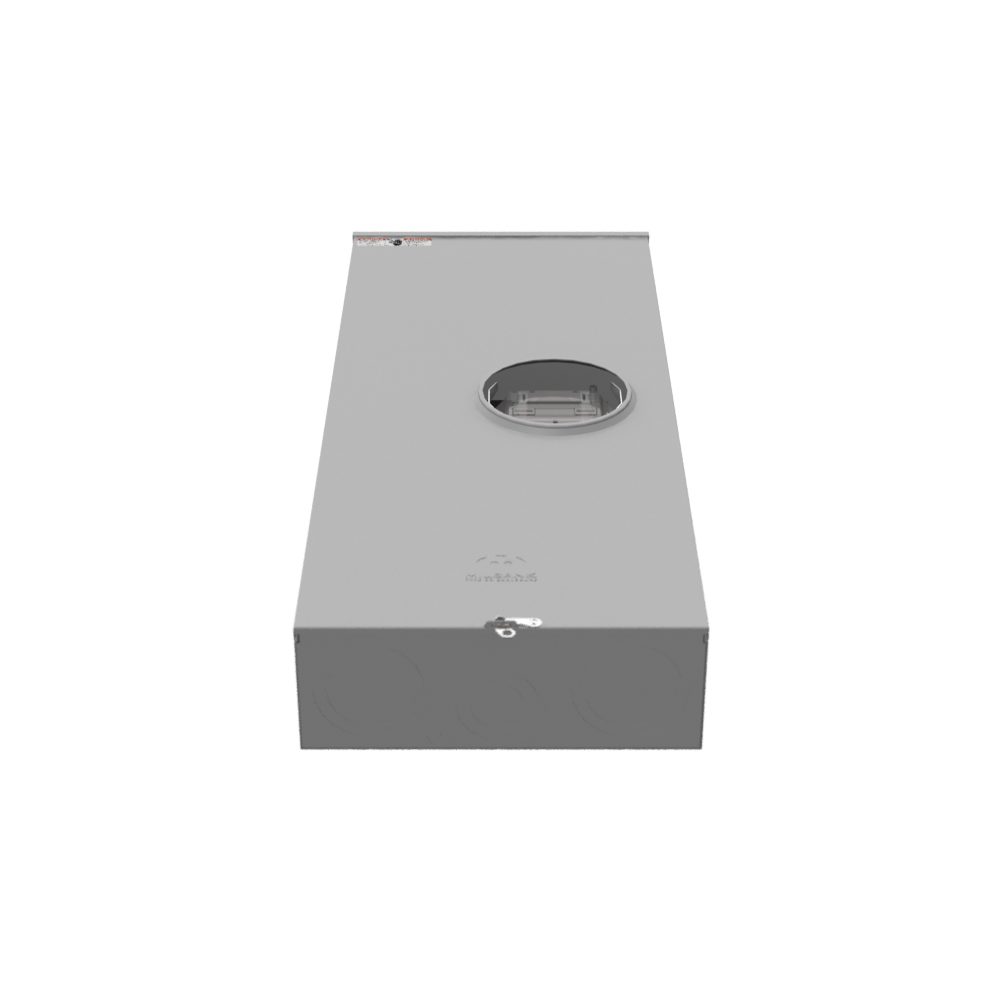

U4905-X
4 Terminal Ringless Large Closing Plate Lever Bypass Side Bussed Tall Shell
Specifications | |
---|---|
Amperage Rating | 320 Continuous Ampere |
Application | Meter Socket |
Brand Name | Milbank |
Bypass Provision | Lever Bypass |
Cable Entry | Overhead and Underground and Side Wireway |
Main Breaker Size | No Main Breaker |
Material | G90 Galvanized Steel with Powder Coat Finish |
Equipment Ground | Triplex Ground |
Frequency Rating | 60 Hertz |
Hub/Closing Plate | Large Closing Plate |
Insulation | Glass Polyester |
Number of Jaws | 4 Terminal |
Knockouts | True |
Mounting | Surface Mount |
Number of Main Breakers | 0 |
Number of Meter Positions | 1 Position |
Number Of Receptacles | 0 |
Phase | 1 Phase |
Size | 5.75L x 16W x 38.75H |
Standard | UL Listed;Type 3R |
Terminal | 3/8 Inch Stud |
Type | Ringless Meter Socket |
Voltage Rating | 600 Volts Alternating Current |
Height | 38.75 IN |
Length | 5.75 IN |
Width | 16.0 IN |
Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.
