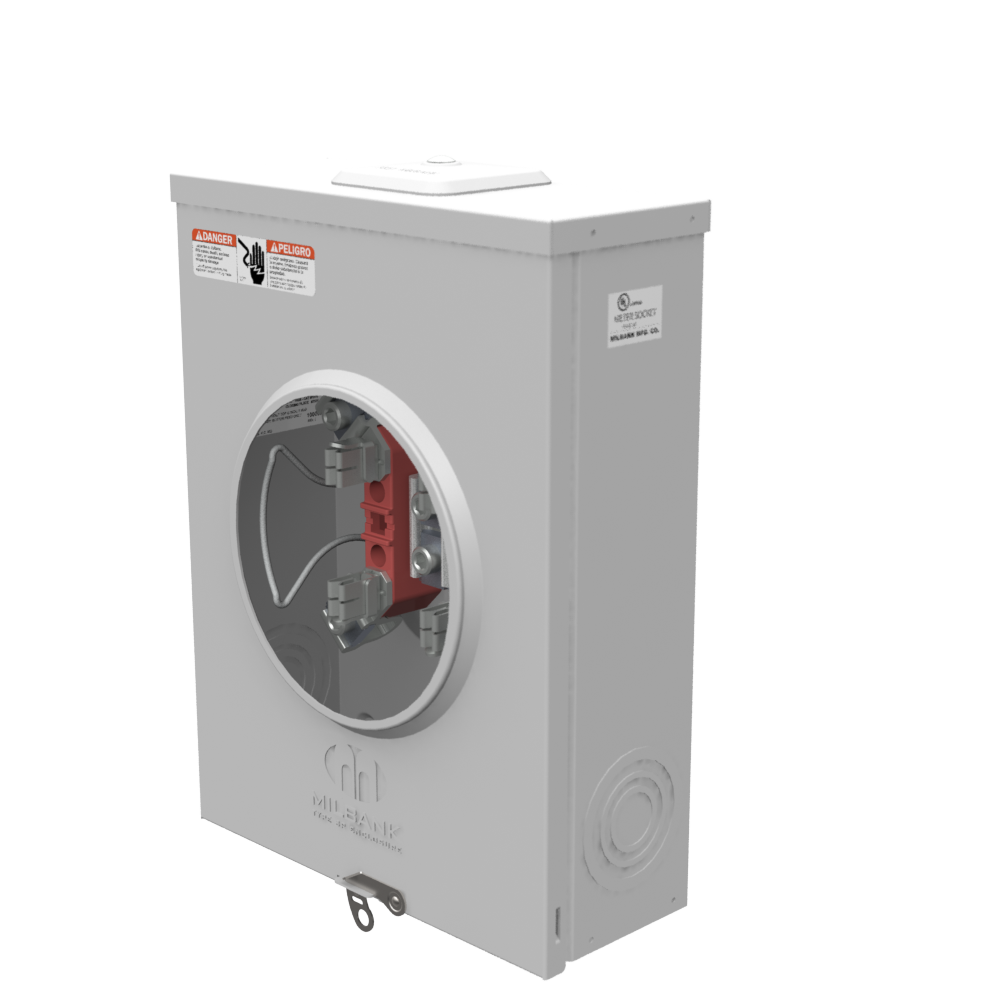

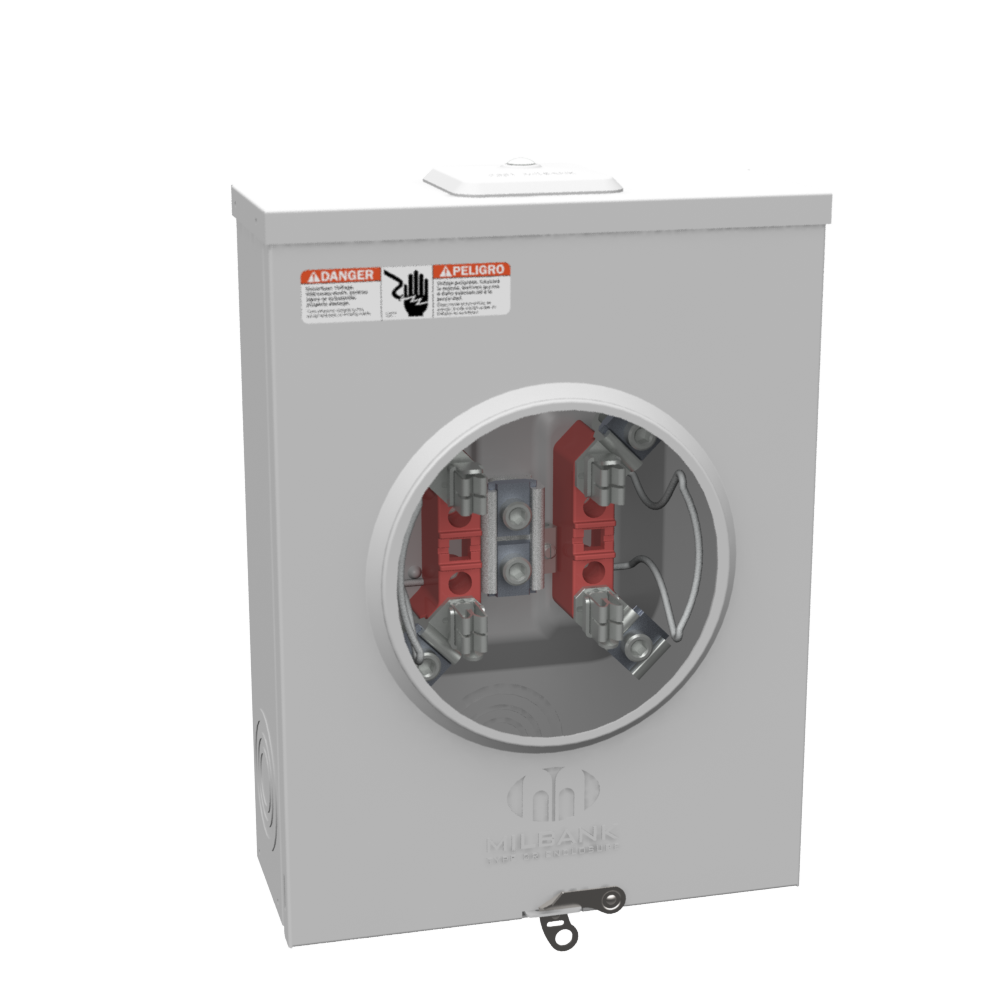

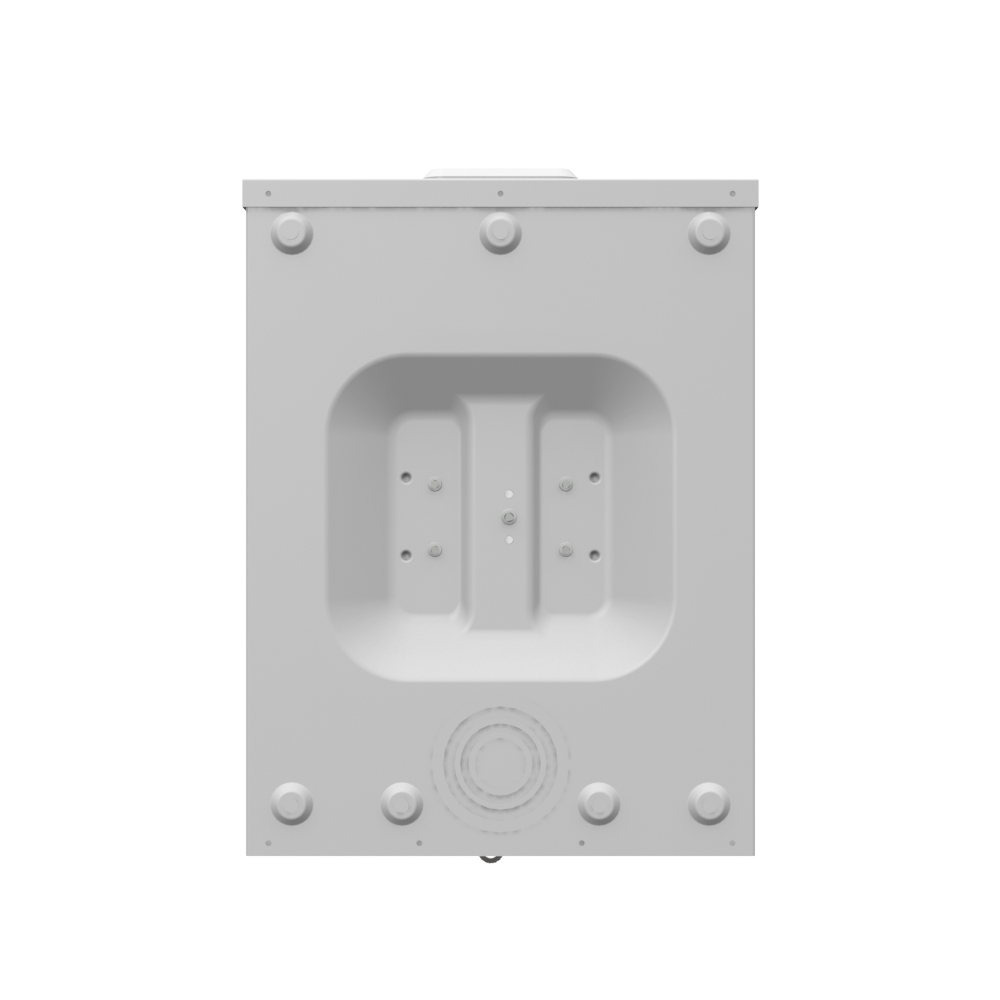

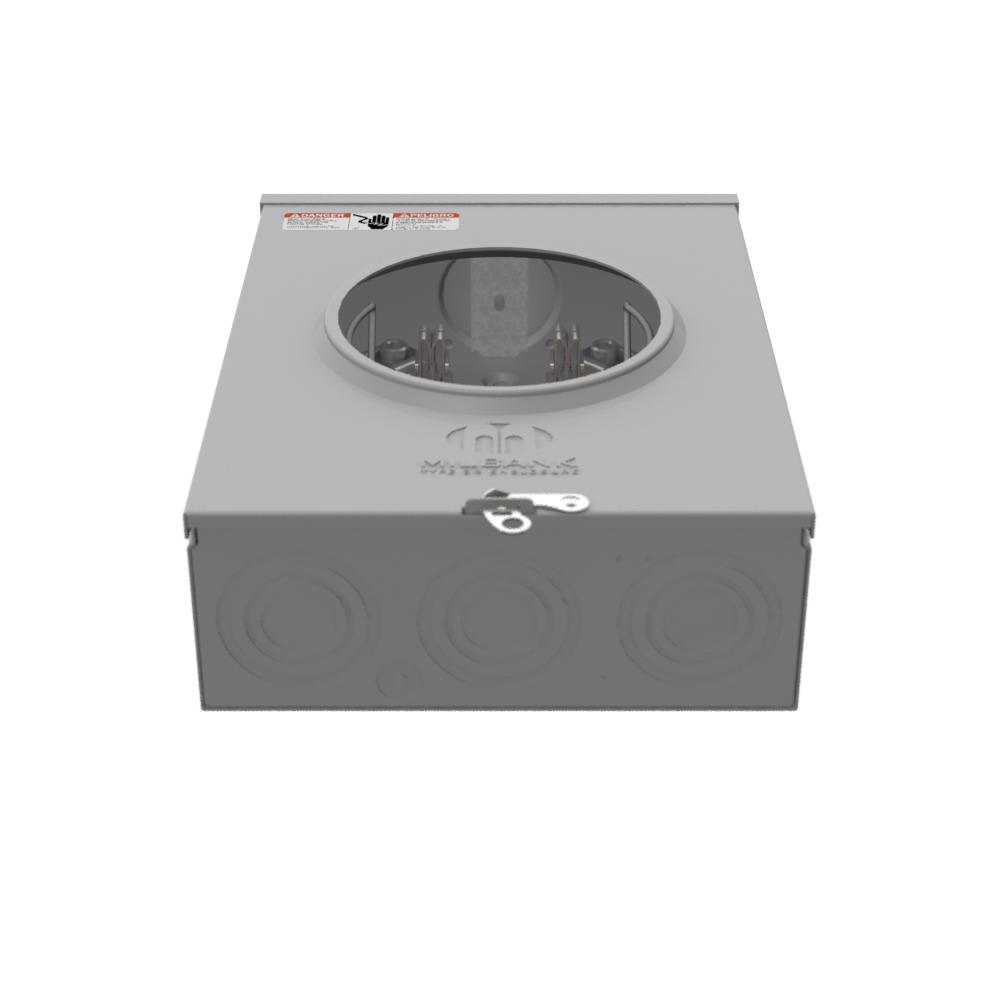

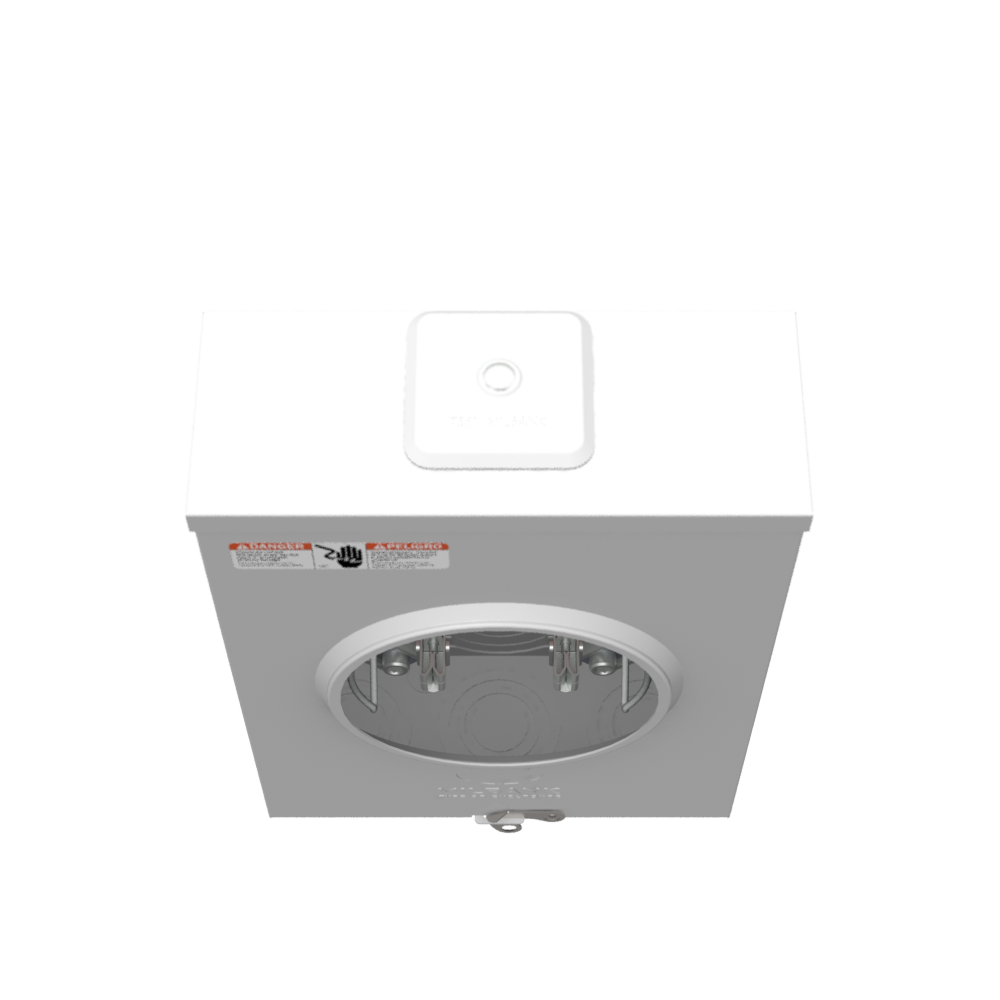

U7040-XL-TG
4 Terminal Ringless Small Closing Plate Triplex Ground
| Specifications | |
|---|---|
| Amperage Rating | 200 Continuous Ampere |
| Application | Meter Socket |
| Brand Name | Milbank |
| Bypass Provision | No Bypass |
| Cable Entry | Overhead or Underground |
| Main Breaker Size | No Main Breaker |
| Material | G90 Galvanized Steel with Powder Coat Finish |
| Equipment Ground | Triplex Ground |
| Frequency Rating | 60 Hertz |
| Hub/Closing Plate | Small Closing Plate |
| Insulation | Glass Polyester |
| Number of Jaws | 4 Terminal |
| Knockouts | True |
| Line Side Wire Range | 6 AWG - 350 kcmil |
| Load Side Wire Range | 6 AWG - 350 kcmil |
| Mounting | Surface Mount |
| Number Branch Circuits | 0 |
| Number of Main Breakers | 0 |
| Number of Meter Positions | 1 Position |
| Number Of Receptacles | 0 |
| Phase | 1 Phase |
| Size | 4.125L x 11W x 14.563H |
| Standard | UL Listed;Type 3R |
| Terminal | Lay in |
| Type | Ringless Meter Socket |
| Voltage Rating | 600 Volts Alternating Current |
| Height | 14.563 IN |
| Length | 4.125 IN |
| Width | 11.0 IN |
Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.
